Ledlenser ATEX EXH6R Rechargeable Head Torch Zone 0/21

ATEX EXH6R Rechargeable Head Torch Zone 0/21

502041

£164.95

Quantity

7yr Warranty with Registration

UK Based Customer Support

Fast Delivery & Free UK Returns

Description
Warranty
Delivery

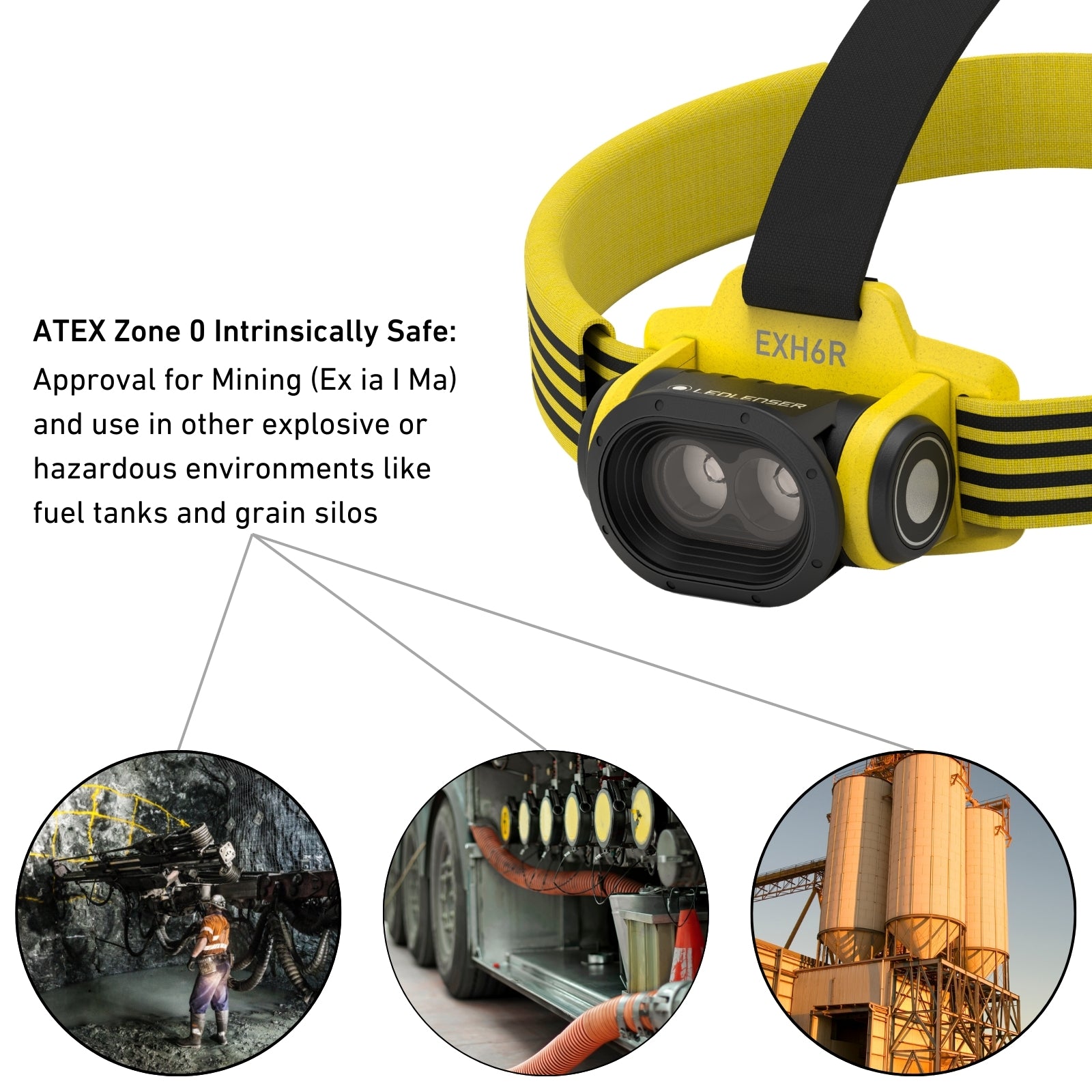

The Ledlenser EXH6R is an independently certified ATEX and IECEx intrinsically safe rechargeable head torch rated for Zone 0 gas environments and Zone 21 dust environments. Certified to II 1G Ex ia IIC T4 Ga and II 2D Ex ib IIIC T135°C Db, it delivers 250 lumens of combined spot and flood output with IP68-rated full submersion protection - the highest IP rating in the Ledlenser ATEX range.

The replaceable 1,900mAh lithium-ion battery charges via a professional charging cradle mountable in workshops or vehicles, eliminating the need to remove and reinsert batteries between shifts. A 135° swivel head, magnetic switch and backup mode for safe evacuation when power is critically low complete a specification designed for the most demanding hands-free hazardous area lighting requirements.

Light Mode Range:

Combined (spot & flood) - 250 lumens / 170m beam / 3-hour runtime
Spot - 180 lumens / 140m beam / 4-hour runtime
Flood - 100 lumens / 30m beam / 10-hour runtime
Spot low - 50 lumens / 90m beam / 15-hour runtime

Endless Benefits:

Separate spot and flood LEDs - dedicated spot beam for long-range illumination (180 lumens / 140m) and a high-power flood LED for wide close-range working light (100 lumens / 30m); combined output reaches 250 lumens / 170m.
IP68 — highest protection in the ATEX range - full submersion protection beyond 1 metre; the most comprehensively water and dust protected Ledlenser ATEX head torch available.

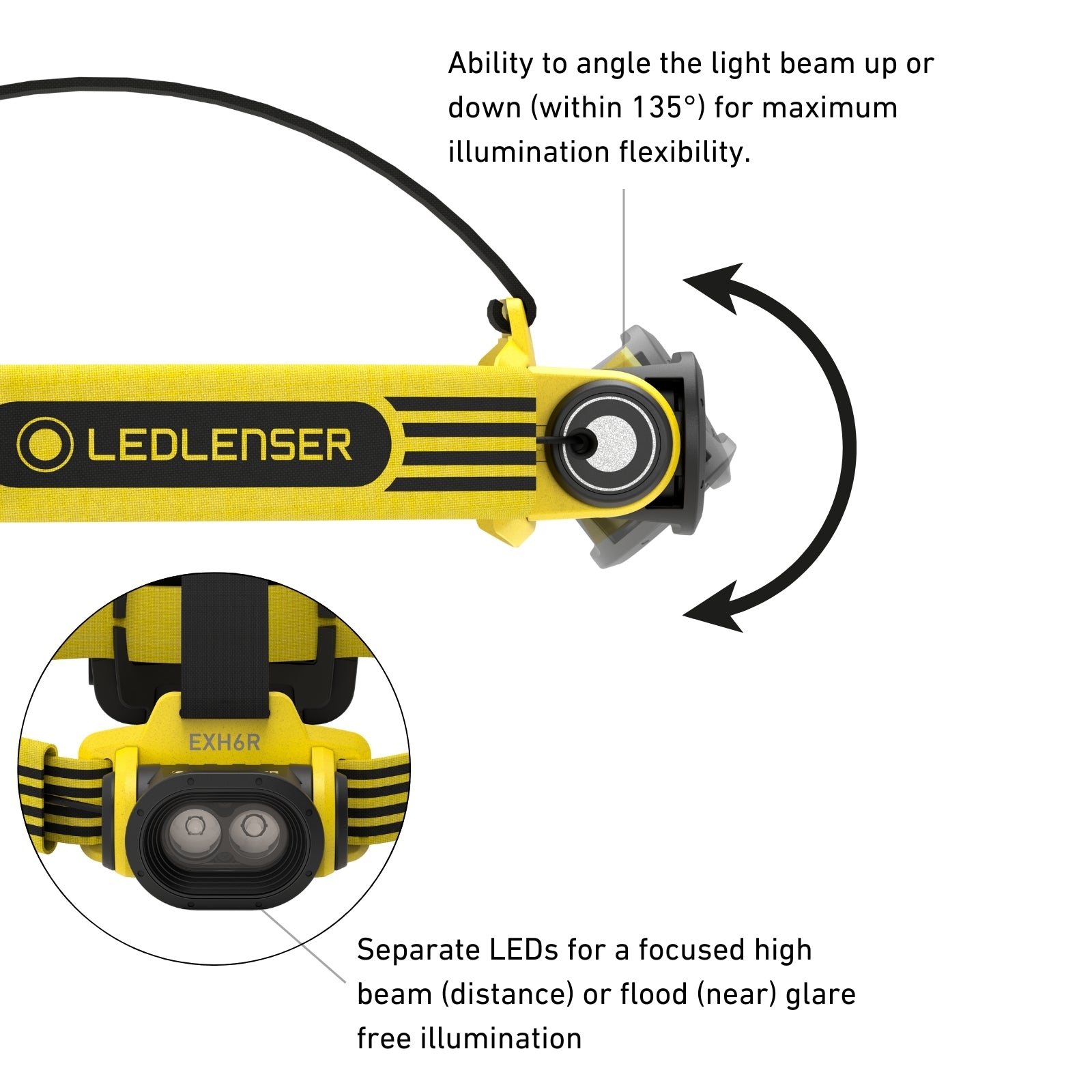

135° swivel head - stepped movement across a 135° range for precise beam direction upwards or downwards regardless of head or helmet position.

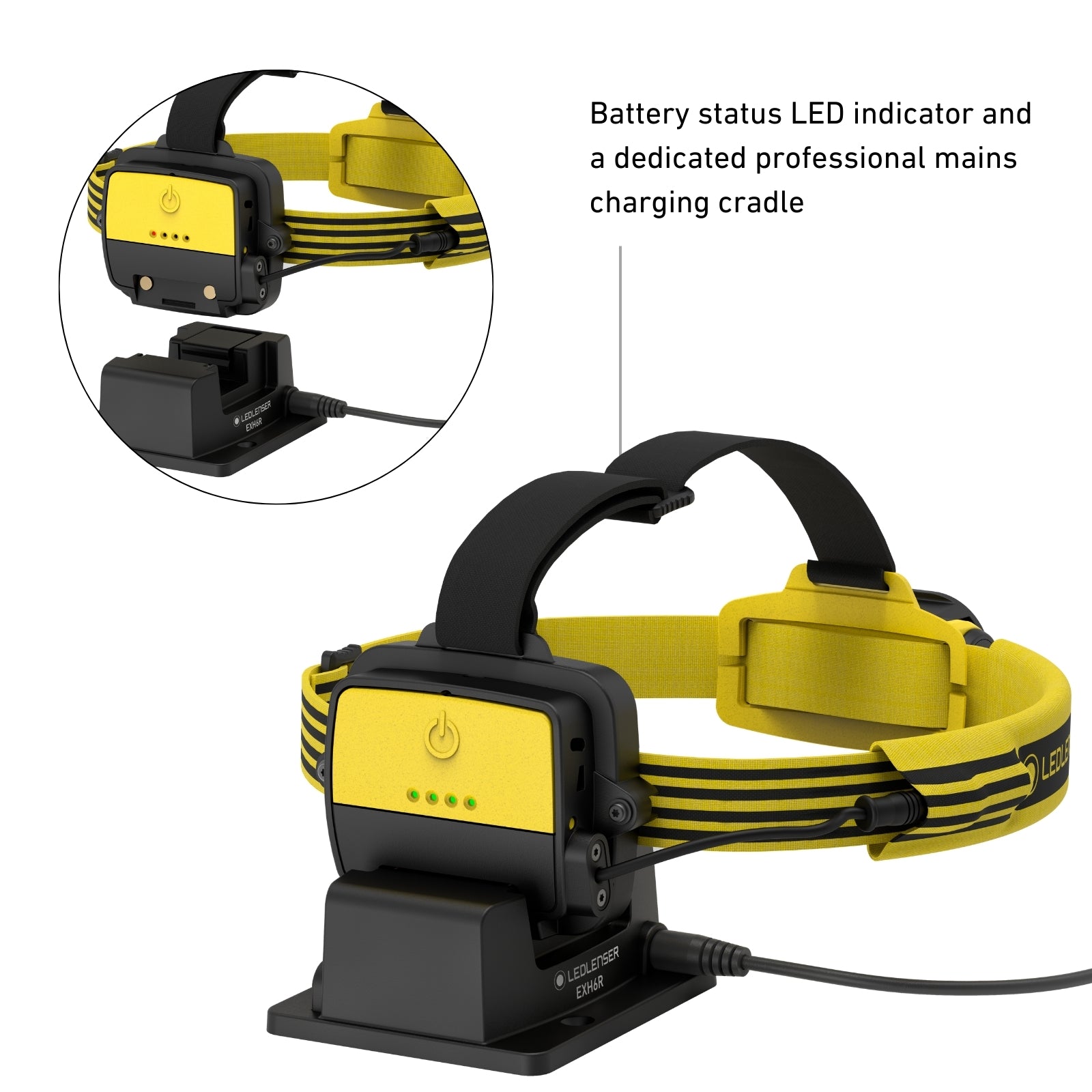

Replaceable rechargeable battery - 1,900mAh lithium-ion cell replaceable when needed; charges via professional cradle mountable in workshops or on vehicles in 210 minutes.
Backup mode - automatically activates when battery is critically low, providing remaining runtime for safe evacuation from the hazardous area before power is fully exhausted.
Magnetic switch - operable with gloves and full PPE without removing hand protection.
2-metre drop tested - highest drop test rating in the Ledlenser ATEX head torch range.

Technical Specifications:

Maximum output: 250 lumens (combined)
Maximum beam distance: 170 metres (combined)
Number of LEDs: 2 (1 spot Power LED, 1 flood High Power LED)
Colour temperature: 4,600K–5,400K
CRI: 70
Battery: Lithium-ion 3.7V / 1,900mAh (replaceable)
Charge time: 210 minutes
Head movement angle: 135° (stepped)
IP rating: IP68
Drop tested: 2 metres
Operating temperature: -20°C to +40°C
Weight (with battery): 330g

ATEX and IECEx Certification:

ATEX Certificate: SGS22ATEX0039
IECEx Certificate: IECEx BAS 22.0027
Ex marking: II 1G Ex ia IIC T4 Ga
Ex marking: II 2D Ex ib IIIC T135°C Db
Ex-Zone Gas: Zone 0 — Gas Groups IIA, IIB, IIC — Temperature Class T4
Ex-Zone Dust: Zone 21 — Dust Groups IIIA, IIIB, IIIC — Temperature Class 135°C

Compatible Accessories:

Silicone Headband Type A (item 501595)

Inside the Box:

Adaptor cable
Charging station
Power adapter

Ledlenser products have an industry leading warranty that covers defects in manufacturing, extended up to 7 years with registration of certain products. Most of our lights have a standard warranty period of 2 years which can be extended by a further 5 years with online registration. This warranty does not apply to all products, which include but not exclusive to, our K Series (keyring lights), Kid's Lights, Lite Wallet, Solidline, TFX range, all accessories including batteries, power banks spare parts and replacement parts. Please read the full information provided on warranty documentation in your box orfor more details, visit our Service and Warranty page.

All orders are dispatched from our warehouse located within the United Kingdom.
Although not guaranteed, we aim to dispatch all orders received prior to 2pm on the same working day, Monday to Friday only, excluding Bank Holidays.
Standard Delivery - up to 5 Working Days
Next Working Day - 1/2 Working Days, cut off 2pm.
Saturday Delivery - cut off 12pm Friday.

Product Specifications

Light Mode Range:

Combined (spot & flood) - 250 lumens / 170m beam / 3-hour runtime
Spot - 180 lumens / 140m beam / 4-hour runtime
Flood - 100 lumens / 30m beam / 10-hour runtime
Spot low - 50 lumens / 90m beam / 15-hour runtime

Endless Benefits:

Separate spot and flood LEDs - dedicated spot beam for long-range illumination (180 lumens / 140m) and a high-power flood LED for wide close-range working light (100 lumens / 30m); combined output reaches 250 lumens / 170m.
IP68 — highest protection in the ATEX range - full submersion protection beyond 1 metre; the most comprehensively water and dust protected Ledlenser ATEX head torch available.
135° swivel head - stepped movement across a 135° range for precise beam direction upwards or downwards regardless of head or helmet position.
Replaceable rechargeable battery - 1,900mAh lithium-ion cell replaceable when needed; charges via professional cradle mountable in workshops or on vehicles in 210 minutes.
Backup mode - automatically activates when battery is critically low, providing remaining runtime for safe evacuation from the hazardous area before power is fully exhausted.
Magnetic switch - operable with gloves and full PPE without removing hand protection.
2-metre drop tested - highest drop test rating in the Ledlenser ATEX head torch range.

Technical Spec:

Maximum output: 250 lumens (combined)
Maximum beam distance: 170 metres (combined)
Number of LEDs: 2 (1 spot Power LED, 1 flood High Power LED)
Colour temperature: 4,600K–5,400K
CRI: 70
Battery: Lithium-ion 3.7V / 1,900mAh (replaceable)
Charge time: 210 minutes
Head movement angle: 135° (stepped)
IP rating: IP68
Drop tested: 2 metres
Operating temperature: -20°C to +40°C
Weight (with battery): 330g

ATEX Certificate: SGS22ATEX0039
IECEx Certificate: IECEx BAS 22.0027
Ex marking: II 1G Ex ia IIC T4 Ga
Ex marking: II 2D Ex ib IIIC T135°C Db
Ex-Zone Gas: Zone 0 — Gas Groups IIA, IIB, IIC — Temperature Class T4
Ex-Zone Dust: Zone 21 — Dust Groups IIIA, IIIB, IIIC — Temperature Class 135°C

FAQs

What is the difference between the EXH6R and EXH8 head torches?

The EXH8 runs on 3 × AA alkaline batteries — 180 lumens, IP66, 55° tilt — suited to Zone 0/20 environments where recharging is impractical. The EXH6R is rechargeable — 250 lumens combined output with separate spot and flood LEDs, IP68 (higher than the EXH8's IP66), 135° tilt, replaceable battery and professional charging cradle. The EXH6R also carries different dust zone certification: Zone 21 for dust (vs Zone 20 on the EXH8), while maintaining Zone 0 for gas. Choose the EXH8 for battery-powered Zone 0/20 reliability; the EXH6R for rechargeable capability with higher output, IP68 protection and a wider beam tilt range.

What does the Backup Mode do on the EXH6R?

Backup Mode activates automatically when the battery reaches a critically low charge level — switching the torch to a reduced output mode and providing sufficient remaining runtime to safely leave the hazardous area and reach a charging point before power is fully exhausted. This is a critical safety feature for professionals working in Zone 0/21 environments where unexpected power loss could have serious consequences.

What does separate spot and flood LED mean and why does it matter?

Unlike standard head torches where a single LED switches between spot and flood via mechanical beam adjustment, the EXH6R uses two separate dedicated LEDs — one optimised for focused spot illumination (180 lumens / 140m) and one high-power LED for broad, homogeneous flood lighting (100 lumens / 30m). Both can be used simultaneously for 250 lumens of combined output. This dual-LED approach delivers superior performance in both beam modes simultaneously — no mechanical adjustment required.

Where can the EXH6R charging cradle be installed?

The professional charging cradle included with the EXH6R is designed for fixed installation in workshops, plant rooms, control rooms or on vehicles — providing a permanent, secure charging point in a safe area outside the classified hazardous zone. The battery can also be attached to clothing or equipment using an extension cable (not supplied) for flexible deployment within the hazardous area.
