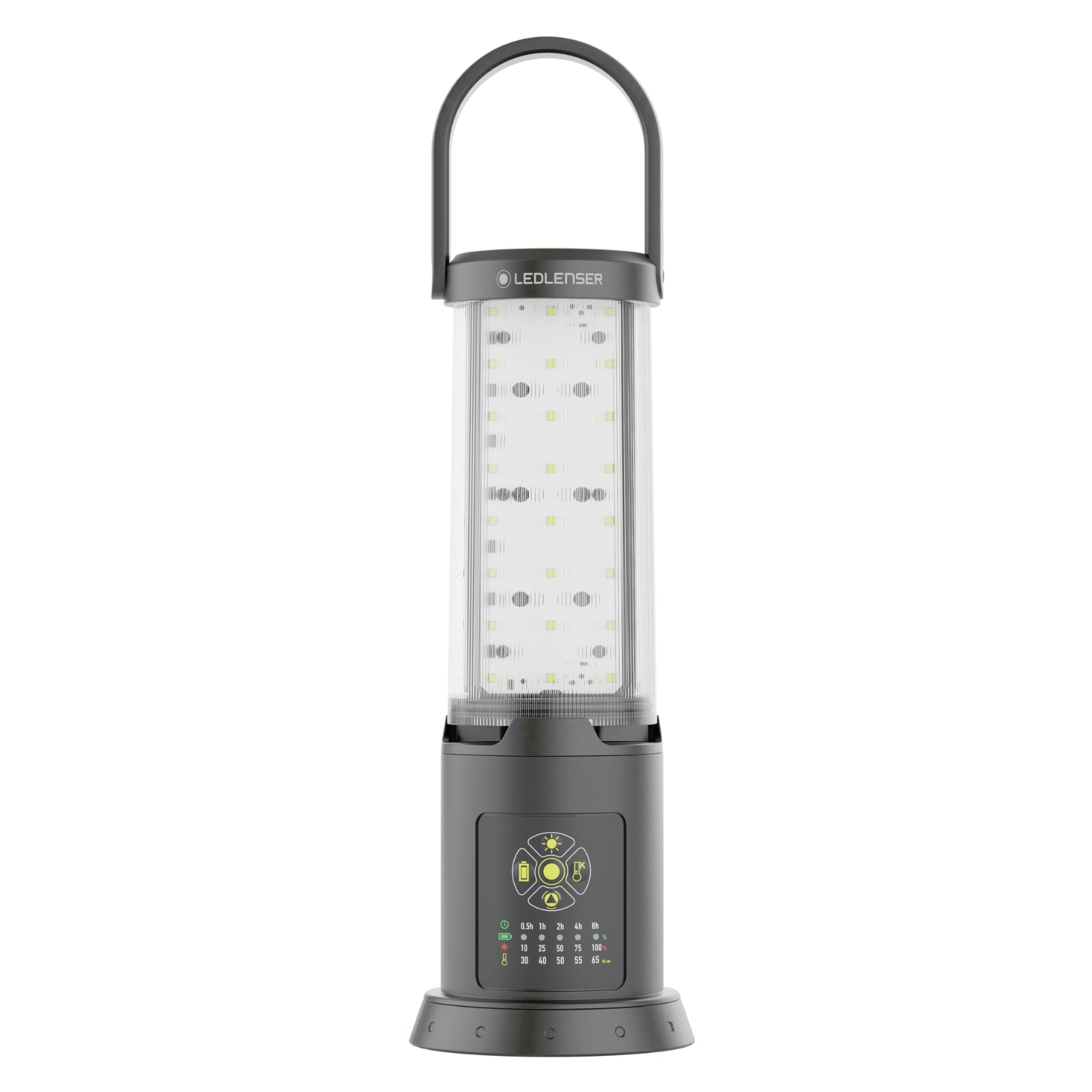

The Ledlenser AL10R Work is a fundamentally different product to the directional AF Series floodlights — a cylindrical 360° lantern with three independent light panels that can be switched on and off individually to provide 360°, 240° or 120° illumination depending on where light is needed and where it is not. At 6,300 lumens with 5-step tunable white light from 3,000K to 6,500K and CRI 80, it is designed for large indoor and outdoor work areas where surrounding rather than directional illumination is required — scaffolding, tented emergency structures, open construction floors and any environment where light needs to reach in all directions simultaneously.

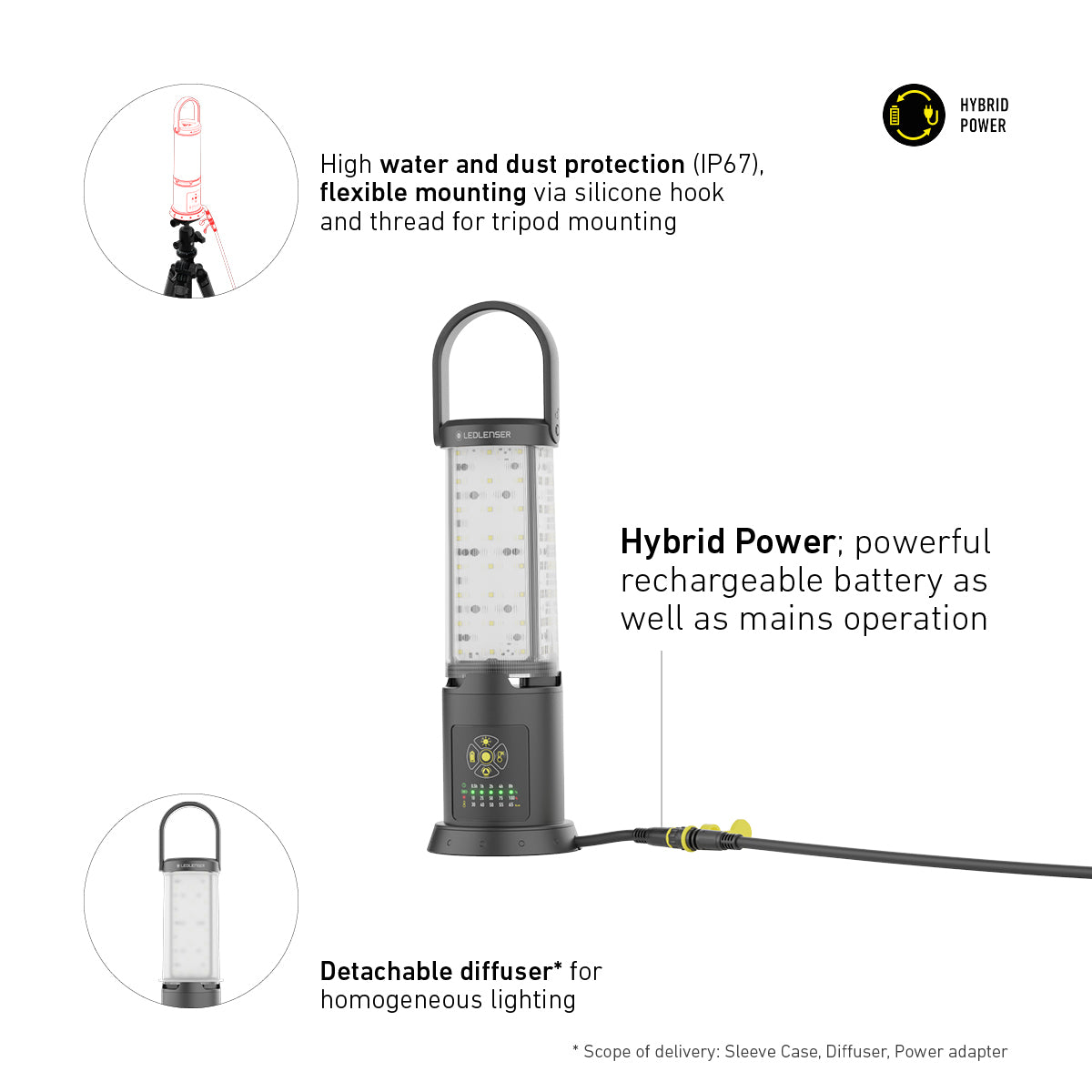

Hybrid Power provides battery and mains operation. Chemical resistance makes it suitable for use near solvents, fuels and industrial chemicals. A diffuser is included to soften direct output for sensitive work environments. The silicone hook allows hanging from scaffolding, tent frames and overhead structures without tools.
Light Modes — All Three Panels Active:
- 100% — 6,300 lumens / 60m beam / 1-hour runtime
- 75% — 5,100 lumens / 50m beam / 1.25-hour runtime
- 50% — 3,600 lumens / 40m beam / 2-hour runtime
- 25% — 1,800 lumens / 30m beam / 4-hour runtime
- 10% — 750 lumens / 15m beam
Endless Benefits:

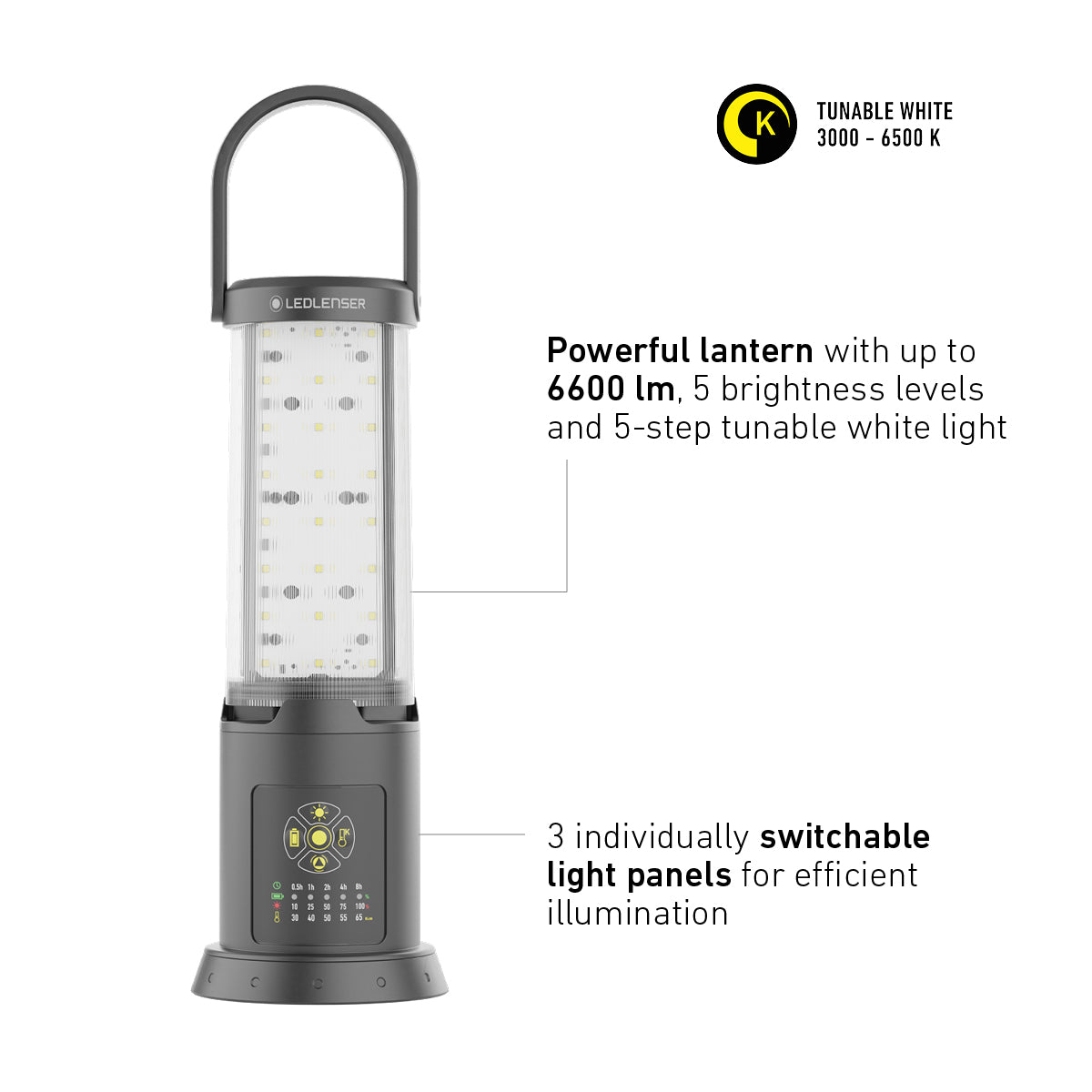

- Three independent light panels — 360°, 240° or 120° — switch each panel on or off individually to direct illumination where needed and eliminate wasted light in areas that don't require it; reduces glare and saves energy compared to full 360° output when only partial coverage is needed.
- 6,300 lumens / CRI 80 — five output levels from 750 lumens (10% panel output) to 6,300 lumens at full 360° illumination.
- 5-step tunable white light — 3,000K to 6,500K — adjust from warm ambient lighting to cool daylight for inspection and colour-critical tasks; memory function retains settings.
- Hybrid Power — battery and mains — 4,700mAh / 10.8V Li-ion battery pack for portable deployment; mains power via the included power adapter for continuous operation.
- Chemical resistant — the only model in the AF/AL range confirmed chemically resistant; suitable for environments with solvent, fuel and industrial chemical exposure.
- Diffuser included — softens direct LED output for sensitive environments; supplied as standard in the box.

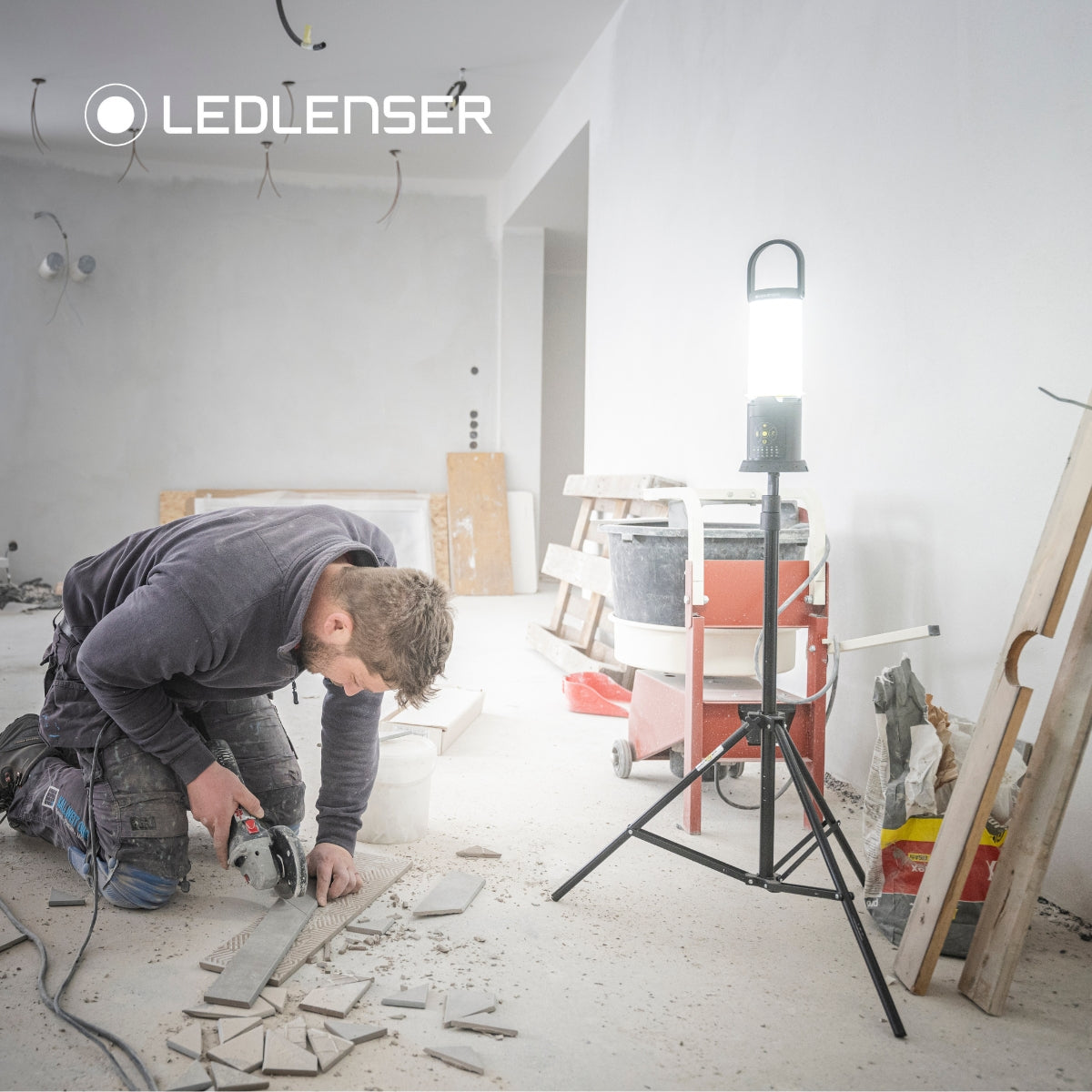

- Silicone hook and tripod thread — hang from scaffolding, tent frames and overhead structures; or mount on the Tripod 3m (item 503212) for elevated 360° site illumination.
- IP67 rated — full dust and water protection for outdoor and all-weather site use.
Technical Specifications:
- Maximum output: 6,300 lumens (all panels, 100%)
- Battery: 3 × 21700 Li-ion battery pack / 4,700mAh / 10.8V / also mains powered
- Charge time: 390 minutes
- Colour temperature: 3,000K–6,500K (tunable, 5 steps)
- CRI: 80
- IP rating: IP67
- Operating temperature: -20°C to +40°C
- Weight: 1,397g
- Dimensions: 110mm × 390mm × 110mm
- Material: Aluminium alloy / PC
Compatible Accessories:
- Controller for Area Lights (item 503018)
- Extension Cable 5m (item 503016)
- Ledlenser Tripod 3m (item 503212)
Inside the Box:
- Diffuser
- Power adapter
- Case
